Empty the condensate trap

Water visible in the trap? Check the outlet and seal.

Next-Gen testo 300

Applies to: Next-Gen testo 300, matching the pictured outlet.

Before you start: Stop the pump. Acidic condensate requires acid-resistant gloves, eye protection and protective clothing. Keep liquid off skin and housing.

Open the outlet

Open the trap’s sealing plug as illustrated.

Next-Gen testo 300 condensate outlet with its tethered sealing plug open; the manual highlights the outlet.
Condensate outlet. Testo manual, page 83 ↗ · Select image to enlarge.

Drain the trap

Hold the outlet downward and drain into a suitable container.

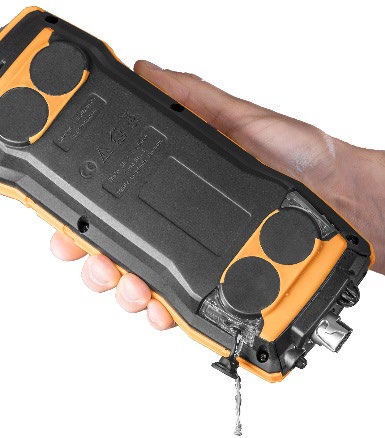

Hand holding a Next-Gen testo 300 with its open condensate outlet downward while liquid drains.
Drain position. Testo manual, page 83 ↗ · Select image to enlarge.

Close the seal

Wipe remaining drops and close fully. A leaking seal can distort readings.

If the issue continues: If the plug will not seal or liquid has entered the housing, stop using the device and tell QRM what happened.

Still need help with your device?

Include the model, serial number, exact error and checks already completed.

Start a service request

Source and applicability

Next-Gen testo 300 - Combustion Analyzer: Instruction Manual — §10.5, pp. 82–83; safety §3, p. 8. 0970 3010 en 07 - 11.2022

Open the complete Testo operating manual ↗ · Find this model in the manual list

QRM wording summarizes the checks. Diagram excerpts © Testo SE & Co. KGaA. Follow the complete manual and warnings for your instrument. Source checked 7 September 2026.
